ISWB臥式管道油泵
  • ISWB臥式管道油泵
  • ISWB臥式管道油泵
  • ISWB臥式管道油泵
  • ISWB臥式管道油泵

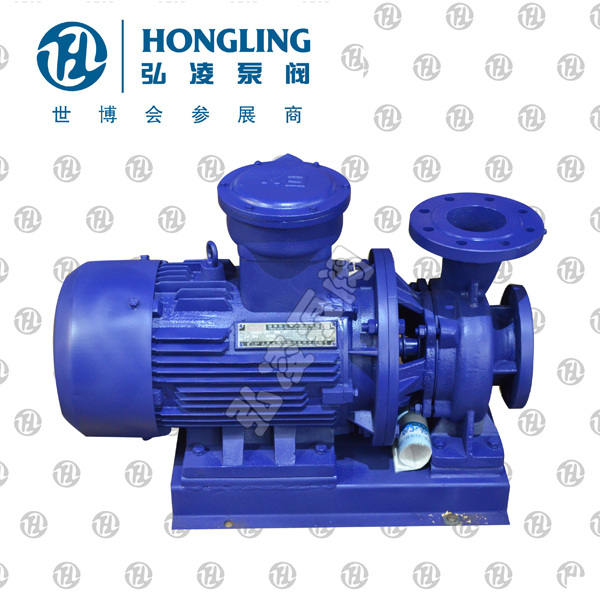

ISWB臥式管道油泵

ISWB型臥式離心油泵供輸送汽油、煤油、柴油等油類產品或易燃、易爆液體,被輸送介質溫度為-20~ +120℃。
下一個產品:YG型不銹鋼防爆管道油泵
上一個產品:沒有了

ISWB臥式管道油泵產品概述

臥式離心油根據ISW型離心泵之性能參數和油泵的獨特結構組合設計,并嚴格按照國際iso2858進行設計制造,該產品配備防爆電機,軸封選用硬質合金機械密封裝置,具有使用安全、性能穩定等特點。

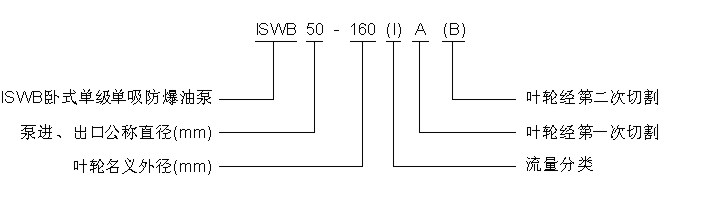

ISWB臥式管道油泵型號意義

ISWB臥式管道油泵主要特點

運行平穩:泵軸的絕對同心度及葉輪優異的動靜平衡,保證平穩運行,絕無振動。

滴水不漏:不同材質的硬質合金密封,保證了不同介質輸送均無泄漏。

噪音低:兩個低噪音的軸承支撐下的水泵,運轉平穩,除電機微弱聲響,基本無噪音。

故障率低:結構簡單合理,關鍵部分采用國際一流品質配套,整機無故障工作時間大大提高。

維修方便:更換密封、軸承、簡易方便。

ISWB臥式管道油泵主要用途

1、ISW臥式離心泵供輸送清水及物理化學性質類似于清水的其它液體之用,適用于工業和城市給排水、高層建筑增壓送水、園林噴灌、消防增壓、遠距離輸送、暖通制冷循環、浴室等冷暖水循環增壓及設備配套,使用溫度t≤80℃。
2、熱水離心泵廣泛適用于:冶金、化工、紡織、造紙以及賓館飯店等鍋爐熱水增壓循環輸送及城市采暖系統,iswr型使用溫度t≤120℃。
3、化工離心泵供輸送不含固體顆粒,具有腐蝕性、粘度類似于水的液體,適用于石油、化工、電力、造紙、食品制藥和合成纖維等部門,使用溫度為-20℃~+120℃。
4、離心油泵供輸送汽油、煤油、柴油等油類產品或易燃、易爆液體,被輸送介質溫度為-20~ +120℃。

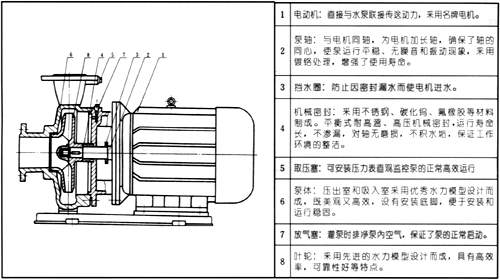

ISWB臥式管道油泵結構簡圖

  結構簡圖

 ISWB臥式管道油泵性能參數表

型號 流量 揚程
m
效率
%
轉速
r/min
電機
功率
kw
汽蝕
余量
m
重量
kg
m3/h l/s
ISWB15-80 1.1
1.5
2.0
0.3
0.42
0.55
8.5
8
7
26
34
34
2900 0.18 2.3 17
ISWB20-110 1.8
2.5
3.3
0.50
0.69
0.91
16
15
13.5
25
34
35
2900 0.37 2.3 25
ISWB20-160 1.8
2.5
3.3
0.50
0.69
0.91
33
32
30
19
25
23
2900 0.75 2.3 29
ISWB25-110 2.8
4.0
5.2
0.78
1.11
1.44
16
15
13.5
34
42
41
2900 0.55 2.3 26
ISWB25-125 2.8
4.0
5.2
0.78
1.11
1.44
20.6
20
18
28
36
35
2900 0.75 2.3 28
ISWB25-125A 2.5
3.6
4.6
0.69
1.0
1.28
17
16
14.4
35
35
35
2900 0.55 2.3 27
ISWB25-160 2.8
4.0
5.2
0.78
1.11
1.44
33
32
30
24
32
33
2900 1.5 2.3 39
ISWB25-160A 2.6
3.7
4.9
0.12
1.03
1.36
29
28
26
31
31
31
2900 1.1 2.3 34
ISWB32-100I 4.4
6.3
8.3
1.22
1.75
2.32
13.2
12.5
11.3
48
54
53
2900 0.75 2.0 32
ISWB32-125 3.5
5.0
6.5
0.97
1.39
1.8
22
20
18
40
44
42
2900 0.75 2.3 28
ISWB32-125A 3.1
4.5
5.8
0.86
1.25
1.61
17.6
16
14.4
43
43
43
2900 0.55 2.3 28
ISWB32-160 3.1
4.5
5.8
0.86
1.25
1.61
33
32
30
34
40
42
2900 1.5 2.3 28
ISWB32-160I 4.4
6.3
8.3
1.22
1.75
2.32
33.2
32
30.2
34
40
42
2900 2.2 2.0 47
ISWB32-200 3.1
4.5
5.8
0.86
1.25
1.61
51
50
48
28
35
37
2900 3 2.0 47
ISWB32-200I 4.4
6.3
8.3
1.22
1.75
2.32
50.5
50
48
26
33
35
2900 4 2.0 43
ISWB32-200IA 2.8
4.0
5.2
0.78
1.11
1.44
44.6
44
42.7
34
40
42
2900 2.2 2.0 74
ISWB40-100 4.4
6.3
8.3
1.22
1.75
2.31
13.2
12.5
11.3
48
54
53
2900 0.55 2.3 32
ISWB40-100A 3.9
5.6
7.4
1.08
1.56
2.06
10.6
10
9
52
52
52
2900 0.37 2.3 32
ISWB40-125 4.4
6.3
8.3
1.22
1.75
2.31
21
20
18
41
46
43
2900 1.1 2.3 34
ISWB40-125A 3.9
5.6
7.4
1.08
1.56
2.06
17.6
16
14.4
40
45
41
2900 0.75 2.3 33
ISWB40-160 4.4
6.3
8.3
1.22
1.75
2.31
33
32
30
35
40
40
2900 2.2 2.3 47
ISWB40-160A 4.1
5.9
7.8
1.14
1.64
2.17
29
28
26.3
34
39
39
2900 1.5 2.3 43
ISWB40-160B 3.8
5.5
7.2
1.06
1.53
2.0
25.5
24
22.5
34
38
37
2900 1.1 2.3 38
ISWB40-200 4.4
6.3
8.3
1.22
1.75
2.31
51
50
48
26
33
32
2900 4 2.3 74
ISWB40-200A 4.1
5.9
7.8
1.14
1.64
2.17
45
44
42
26
31
30
2900 3 2.3 62
ISWB40-200B 3.7
5.3
7.0
1.03
1.47
1.94
38
36
34.5
29
29
29
2900 2.2 2.3 52
ISWB40-250 4.4
6.3
8.3
1.22
1.75
2.31
82
80
74
24
28
28
2900 7.5 2.3 105
ISWB40-250A 4.1
5.9
7.8
1.14
1.64
2.17
72
70
65
24
28
27
2900 5.5 2.3 98
ISWB40-250B 3.8
5.5
7.0
1.06
1.53
1.94
61.5
60
56
23
27
26
2900 4 2.3 77
ISWB40-100I 8.8
12.5
16.3
2.44
3.47
4.53
13.2
12.5
11.3
55 62 60 2900 1.1 2.3 34
ISWB40-100IA 8
11
14.5
2.22
3.05
4.03
10.6
10
9
60
60
60
2900 0.75 2.3 32
ISWB40-125I 8.8
12.5
16.3
2.44
3.47
4.53
21.2
20
17.8
49
58
57
2900 1.5 2.3 38
ISWB40-125IA 8
11
14.5
2.22
3.05
4.03
17
16
14
57
57
57
2900 1.1 2.3 33
ISWB40-160I 8.8
12.5
16.3
2.44
3.47
4.53
33
32
30
45
52
51
2900 3 2.3 56
ISWB40-160IA 8.2
11.7
15.2
2.28
3.25
4.22
29
28
26
44
51
50
2900 2.2 2.3 47
ISWB40-160IB 7.3
10.4
13.5
2.38
2.89
3.75
23
22
20.5
50
50
50
2900 1.5 2.3 43
ISWB40-200I 8.8
12.5
16.3
2.44
3.47
4.53
51.2
50
48
38
46
46
2900 5.5 2.3 85
ISWB40-200IA 8.3
11.7
15.3
2.31
3.25
4.25
45
44
42
37
45
45
2900 4 2.3 75
ISWB40-200IB 7.5
10.6
13.8
2.08
2.94
3.83
37
36
34
44
44
44
2900 3 2.3 63
ISWB40-250I 8.8
12.5
16.3
2.44
3.47
4.53
81.2
80
77.5
31
38
40
2900 11 2.3 145
ISWB40-250IA 8.2
11.6
15.2
2.28
3.22
4.22
71
70
68
38
38
38
2900 7.5 2.3 95
ISWB40-250IB 7.6
10.8
14
2.11
3.0
3.89
61.4
60
58
37
37
37
2900 7.5 2.3 94
ISWB40-250IC 7.1
10.0
13.1
1.97
2.78
3.64
53.2
52
50.4
36
36
36
2900 5.5 2.3 88
ISWB50-100 8.8
12.5
16.3
2.44
3.47
4.53
13.6
12.5
11.3
55
62
60
2900 1.1 2.3 36
ISWB50-100A 8
11
14.5
2.22
3.05
4.03
11
10
9
60
60
60
2900 0.75 2.3 35
ISWB50-125 8.8
12.5
16.3
2.44
3.47
4.53
21.5
20
17.8
49
58
57
2900 1.5 2.3 43
ISWB50-125A 8
11
14.5
2.22
3.05
4.03
17
16
14
57
57
57
2900 1.1 2.3 38
ISWB50-160 8.8
12.5
16.3
2.44
3.47
4.53
33
32
30
45
52
51
2900 3 2.3 59
ISWB50-160A 8.2
11.7
15.2
2.28
3.25
4.22
29
28
26
44
51
50
2900 2.2 2.3 51
ISWB50-160B 7.3
10.4
13.5
2.38
2.89
3.75
23
22
20.5
50
50
50
2900 1.5 2.3 47
ISWB50-200 8.8
12.5
16.3
2.44
3.47
4.53
52
50
48
38
46
46
2900 5.5 2.3 101
ISWB50-200A 8.3
11.7
15.3
2.31
3.25
4.25
45.8
44
42
37
45
45
2900 4 2.3 80
ISWB50-200B 7.5
10.6
13.8
2.08
2.94
3.83
37
36
34
44
44
44
2900 3 2.3 68
ISWB50-250 8.8
12.5
16.3
2.44
3.47
4.53
82
80
77.5
29
38
40
2900 11 2.3 160
ISWB50-250A 8.2
11.6
15.2
2.28
3.22
4.22
71.5
70
68
38
38
38
2900 7.5 2.3 115


ISWB50-250B 7.6
10.8
14
2.11
3.0
3.89
61.4
60
58
37
37
37
2900 7.5 2.3 114
ISWB50-250C 7.1
10.0
13.1
1.97
2.78
3.64
53.2
52
50.4
36
36
36
2900 5.5 2.3 108
ISWB50-100I 17.5
25
32.5
4.86
6.94
9.03
13.7
12.5
10.5
67
69
69
2900 1.5 2.5 41
ISWB50-100IA 15.6
22.3
29
4.3
6.19
8.1
11
10
8.4
65
67
68
2900 1.1 2.5 36
ISWB50-125I 17.5
25
32.5
4.86
6.94
9.03
21.5
20
18
60
68
67
2900 3 2.5 56
ISWB50-125IA 15.6
22.3
29
4.33
6.19
8.1
17
16
13.6
58
66
65
2900 2.2 2.5 48
ISWB50-160I 17.5
25
32.5
4.68
6.94
9.03
34.4
32
27.5
54
63
60
2900 4 2.5 72
ISWB50-160IA 16.4
23.4
30.4
4.56
6.5
8.44
30
28
24
54
62
59
2900 4 2.5 71
ISWB50-160IB 15.0
21.6
28
4.17
6.0
7.78
26
24
20.6
58
58
58
2900 3 2.5 59
ISWB50-200I 17.5
25
32.5
4.86
6.94
9.03
52.7
50
45.5
49
58
59
2900 7.5 2.5 108
ISWB50-200IA 16.4
23.5
30.5
4.56
6.53
8.47
46.4
44
40
48
57
58
2900 7.5 2.5 107
ISWB50-200IB 15.2
21.8
28.3
4.22
6.06
7.86
40
38
34.5
55
55
55
2900 5.5 2.5 100
ISWB50-250I 17.5
25
32.5
4.86
6.94
9.03
82
80
76.5
39
50
52
2900 15 2.5 175
ISWB50-250IA 16.4
23.4
30.5
4.56
6.5
8.47
71.5
70
67
39
50
52
2900 11 2.5 165
ISWB50-250IB 15
21.6
28
4.17
6.0
7.78
61
60
57.4
38
49
54
2900 11 2.5 165
ISWB50-315I 17.5
25
32.5
4.86
6.94
9.03
128
125
122
30
40
44
2900 30 2.5 310
ISWB50-315IA 16.6
23.7
31
4.61
6.58
8.6
115
113
110
30
40
44
2900 22 2.5 245
ISWB50-315IB 15.7
22.5
29.2
4.36
6.25
8.0
103
101
98
39
39
39
2900 18.5 2.5 215
ISWB50-315IC 14.4
20.6
26.8
4.0
5.72
7.44
86
85
83
38
38
38
2900 15 2.5 195
ISWB65-100 17.5
25
32.5
4.86
6.94
9.03
13.7
12.5
10.5
67
69
69
2900 1.5 2.5 46
ISWB65-100A 15.6
22.3
29
4.3
6.19
8.1
11
10
8.4
65
67
68
2900 1.1 2.5 41
ISWB65-125 17.5
25
32.5
4.86
6.94
9.03
21.5
20
18
60
68
67
2900 3 2.5 58
ISWB65-125A 15.6
22.3
29
4.33
6.19
8.1
17
16
14.4
58
66
65
2900 2.2 2.5 49
ISWB65-160 17.5
25
32.5
4.86
6.94
9.03
34.4
32
27.5
54
63
60
2900 4 2.5 75
ISWB65-160A 16.4
23.4
30.4
4.56
6.5
8.44
30
28
24
54
62
59
2900 4 2.5 75
ISWB65-160B 15.0
21.6
28
4.17
6.0
7.78
26
24
20.6
2900 3 2.5 63
ISWB65-200 17.5
25
32.5
4.86
6.94
9.03
52.7
50
45.5
49
58
59
2900 7.5 2.5 107
ISWB65-200A 16.4
23.5
30.5
4.56
6.53
8.47
46.4
44
40
48
57
58
2900 7.5 2.5 107
ISWB65-200B 15.2
21.8
28.3
4.22
6.06
7.86
40
38
34.5
55
55
55
2900 5.5 2.5 100
ISWB65-250 17.5
25
32.5
4.86
6.94
9.03
82
80
76.5
39
50
52
2900 15 2.5 180
ISWB65-250A 16.4
23.4
30.5
4.56
6.5
8.47
71.5
70
67
39
50
52
2900 11 2.5 170
ISWB65-250B 15
21.6
28
4.17
6.0
7.78
61
60
57.4
38
49
54
2900 11 2.5 170
ISWB65-315 17.5
25
32.5
4.86
6.94
9.03
127
125
122
32
40
44
2900 30 2.5 320
ISWB65-315A 16.6
23.7
31
4.61
6.58
8.6
115
113
110
32
40
44
2900 22 2.5 255
ISWB65-315B 15.7
22.5
29.2
103
101
98
39
39
39
2900 18.5 2.5 225
ISWB65-315C 14.4
20.6
26.8
4.0
5.72
7.44
86
85
83
38
38
38
2900 15 2.5 205
ISWB65-100I 35
50
65
9.72
13.9
18.1
13.8
12.5
10
67
73
70
2900 3 3.0 63
ISWB65-100IA 31.3
44.7
58
8.7
12.4
16.1
11
10
8
66
72
69
2900 2.2 3.0 53
ISWB65-125I 35
50
65
9.72
13.9
18.1
22
20
17
67
72.5
70
2900 5.5 3.0 99
ISWB65-125IA 31.3
45
58
8.7
12.5
16.1
17.5
16
13.6
66
71
69
2900 4 3.0 78
ISWB65-160I 35
50
65
9.72
13.9
18.1
35
32
28
63
71
70
2900 7.5 3.0 103
ISWB65-160IA 32.7
46.7
61
9.1
13.0
16.9
30.6
28
24
62
70
69
2900 7.5 3.0 103
ISWB65-160IB 30.3
43.3
56.3
8.4
12.0
15.6
26
24
21
69
69
69
2900 5.5 3.0 97
ISWB65-200I 35
50
65
9.72
13.9
18.1
53.5
50
46
55
67
68
2900 15 3.0 176
ISWB65-200IA 32.8
47
61
9.1
13.1
16.9
47
44
40
54
66
67
2900 11 3.0 166
ISWB65-200IB 30.5
43.5
56.6
8.5
12.1
15.7
40.6
38
33.4
65
65
65
2900 7.5 3.0 114
ISWB65-250I 35
50
65
9.72
13.9
18.1
83
80
72
52
59
60
2900 22 3.0 235
ISWB65-250IA 32.5
46.7
61
9.0
13.0
16.9
73
70
63
52
59
60
2900 18.5 3.0 205
ISWB65-250IB 30
43.3
56
8.3
12.0
15.6
62
60
54
58
58
58
2900 15 3.0 180
ISWB65-315I 35
50
65
9.72
13.9
18.1
128
125
121
44
54
57
2900 37 3.0 350
ISWB65-315IA 32.5
46.5
60.5
9.0
12.9
16.8
112.6
110
106.4
43
54
57
2900 30 3.0 335
ISWB65-315IB 31
44.5
58
8.6
12.4
16.1
102.5
100
98
53
53
53
2900 30 3.0 335
ISWB100-315A 66.5
95
123.6
18.5
26.4
34.3
119
113
103
65
66
67
2900 55 4.0 549
ISWB100-315B 63
90
117
17.5
25
32.5
106.6
101
92
65
65
65
2900 45 4.0 439
ISWB100-315C 58
82
107
16.1
22.8
29.7
90
85
76
63
63
63
2900 37 4.0 385
ISWB100-350 60
100
120
16.7
27.8
33.3
153.6
150
142
72
57
74
2900 90 4.0 950
ISWB100-350A 61
87
113
16.9
24.2
31.4
145.6
142
134
75
75
75
2900 75 4.0 830
ISWB100-350B 58
82
107
16.1
22.8
29.7
138.6
135
127
75
75
75
2900 55 4.0 600
ISWB100-100I 96
160
192
26.7
44.4
53.3
14
12.5
10
64
73
70
2900 11 4.5 115
ISWB100-125I 96
160
192
26.7
44.4
53.3
24
20
14
62
74
69
2900 15 4.5 168
ISWB100-125IA 84
140
168
23.3
39
46.7
20
17
12
64
72
69
2900 11 4.5 168
ISWB100-160I 96
160
192
26.7
44.4
53.3
36
32
27
69
79
75
2900 22 5.6 210
ISWB100-160IA 84
140
168
23.3
39
46.7
32
28
23.5
66
76
72
2900 18.5 5.0 210
ISWB100-200I 96
160
192
26.7
44.4
53.3
53
50
45
69
79
78
2900 37 5.2 402
ISWB100-200IA 84
140
168
23.3
39
46.7
48
45
40
64
74
73
2900 30 4.5 395
ISWB100-200IB 60
100
120
16.7
27.8
33.3
43
40
36
72
72
72
2900 22 4.5 360
ISWB100-250I 96
160
192
26.7
44.4
53.3
83
80
72
65
77
74
2900 55 4.8 560
 ISWB100-250IA 84
140
168
23.3
39
46.7
75
72
65
60
72
69
2900 45 4.5 420
ISWB100-250IB 60
100
120
16.7
27.8
33.3
68
65
58
70
70
70
2900 37 4.5 400
ISWB125-100 96
160
192
26.7
44.4
53.3
13
12.5
12
82
82
82
2900 11 4.0 180
ISWB125-100A 86
143
172
23.9
39.7
47.8
10.4
10
9.6
77
77
77
290 7.5 4.0 125
ISWB125-125 96
160
192
26.7
44.4
53.3
22.6
20
17
80
80
80
2900 15 4.0 220
ISWB125-125A 86
143
172
23.9
39.7
47.8
18
16
13.6
77
77
77
2900 11 4.0 210
ISWB125-160 96
160
192
26.7
44.4
53.3
36
32
28
78
78
&, nbsp; 78
2900 22 4.0 265
ISWB125-160A

90
150
180

25
41750
31.5
28
24.5
76
76
76
2900 18.5 4.0 230
ISWB125-160B 83
138
166
21.7
38.3
46.1
27
24
21
73
73
73
2900 15 4.0 215
ISWB125-200 96
160
192
26.7
44.4
53.3
55
50
46
77
77
77
2900 37 5.5 395
ISWB125-200B 83
138
166
21.7
38.3
46.1
41.3
37.4
34.5
75
75
75
2900 22 5.5 320
ISWB125-250 96
160
192
24.744.753.3 87
80
73
75
75
75
2900 55 5.0 580
ISWB125-250A 90
150
180
25
41.7
50
76
70
84
74
74
74
2900 45 5.5 490
ISWB125-250B 83
138
166
21.7
38.3
46.1
65
60
55
73
73
73
2900 37 5.5 430
ISWB125-215 96
160
192
26.7
44.7
53.3
133
125
119
70
70
70
2900 90 5.0 790
ISWB125-315A 90
150
180
25
41.7
50
117
110
104.6
70
70
70
2900 75 5.0 710
ISWB125-315B 86
143
172
23.9
39.7
47.8
106.4
100
95.2
69
69
69
2900 75 5.0 705
ISWB125-315C 80.5
134
161
22.4
37.2
44.7
96
88
86
67
67
67
2900 55 5.0 585
ISWB150-125 96
160
192
26.7
44.4
53.3
22.6
24
17
66
76
76
2900 11 4.0 210
ISWB150-125A 90
150
180
25
41.7
50
18
16
13.6
77
77
77
2900 7.5 4.0 130
ISWB150-160 96
160
192
26.7
44.4
53.3
36
32
27
75
75
75
2900 22 4.0 270
ISWB150-160A 90
150
180
25
41.7
50
32
28
23.5
76
76
76
2900 18.5 4.0 230
ISWB150-160B 84
141
168
23.3
39
46.7
27
24
21
73
73
73
2900 15 4.0 220
ISWB150-200 140
200
260
38.9
55.6
72.2
13.8
12.5
10.6
68
78
78
1450 15 3.0 265
ISWB150-200A 125
176
232.5
34.7
49.7
64.6
11
10
8.5
66
76
76
1450 11 3.0 244
ISWB150-200B 84
440
168
23.3
39
46.7
41
38
34
75
75
75
2900 22 4.0 275
ISWB150-250 140
200
260
38.9
55.6
72.2
21.8
20
17
73
79
77
1450 18.5 3.0 300
ISWB150-250A 129
184.4
240
35.8
51.2
66.7
18.5
17
14.4
72
78
76
1450 15 3.0 262
ISWB150-250B 117
167
217.5
32.5
46.4
60.4
15.2
14
12
76
76
76
1450 11 3.0 241
ISWB150-315 140
200
260
38.9
55.6
72.2
33.8
32
28
70
78
73
1450 30 2.5 410
ISWB150-315A 131
187
243
36.4
51.9
67.5
29.5
28
24.5
69
77
77
1450 22 3.5 335
ISWB150-315B 121
173
225
33.5
48.1
62.5
25
24
21
76
76
76
1450 18.5 3.5 315
ISWB150-350 96
160
192
26.7
44.4
53.3
153.6
150
142.8
80
80
80
2900 110 5.5 970
ISWB150-350A 90
150
180
25
41.7
50
145.6
142
134.8
70
70
70
2900 90 5.2 790
ISWB150-350B 84
140
168
23.3
39
46.7
138.6
35
127.8
65
76
74
2900 75 5.5 705
ISWB150-400 140
200
260
38.9
55.6
72.2
53
50
44
68
75
71
1450 45 3.5 490
ISWB150-400A 131
187
243
36.4
51.9
67.5
46.4
44
38.3
67
74
70
1450 37 3.5 454
ISWB150-400B 122
174
226.5
33.9
48.3
62.9
40
38
33
73
73
73
1450 60 3.5 435
ISWB150-400C 112
160
208
31.1
44.4
57.8
34
32
28
71
71
71
1450 22 3.5 365
ISWB150-250I 120
200
240
33.3
55.6
66.7
87
80
72
65
76
74
2900 75 4.5 702
ISWB150-250IA 112
187
224
31.1
51.9
62.2
76
70
63
64
75
73
2900 55 4.5 451
ISWB150-250IB 104
173
208
28.9
48.1
57.8
65
60
54
63
74
72
2900 45 4.5 460
ISWB150-315I 120
200
240
33.3
55.6
66.7
133
125
120
58
72
75
2900 110 4.5 980
ISWB150-315IA 112
187
224
31.1
51.9
62.2
116
110
105
57
72
74
2900 90 4.5 800
ISWB200-315IB 104
173
208
28.9
48.1
57.8
100
95
91
55
70
72
2900 75 4.5 724
ISWB200-200 140
200
260
38.9
55.6
72.2
13.8
12.5
10.6
68
78
78
1450 15 3.0 265
ISWB200-200A 125
179
232.5
34.7
49.7
64.6
11
10
8.5
66
76
76
1450 11 3.0 244
ISWB200-250 140
200
260
38.9
55.6
72.2
21.8
20
17
73
79
77
1450 18.5 3.0 305
ISWB200-250A 129
184.4
240
35.8
51.2
66.7
18.5
17
14.4
72
78
76
1450 15 3.0 267
ISWB200-250B 117
167
217.5
32.5
46.4
60.4
15.2
14
12
76
76
76
1450 11 3.0 246
ISWB200-315 140
200
260
38.9
55.6
72.2
33.8
32
28
70
78
78
1450 30 3.5 417
ISWB200-315A 131
189
243
36.4
51.9
67.5
29.5
28
24.5
69
77
77
1450 22 3.5 342
ISWB200-315B 121
173
225
33.6
48.1
62.5
25
24
21
76
76
76
1450 18.5 3.5 322
ISWB200-400 140
200
260
38.9
55.6
72.2
53
50
44
68
75
71
1450 45 3.5 498
ISWB200-400A 131
187
243
36.4
51.9
67.5
46.6
44
38.3
67
74
70
1450 37 3.5 462
ISWB200-400B 122
174
226.5
33.9
48.6
62.9
44
38
33
73
73
73
1450 30 3.5 443
ISWB200-400C 112
160
208
31.3
44.4
57.8
34
32
28
71
71
71
1450 22 3.5 373
ISWB200-200I 280
400
520
77.8
111.1
144
13.4
12.5
10.5
70
80
79
1450 22 4.0 382
ISWB200-200IA 250
358
465
69.4
99.4
129.2
10.7
10
8.5
68
78
77
1450 18.5 4.0 346
ISWB200-250I 280
400
520
77.8
111.4
144
22.2
20
14
75
80
72
1450 30 4.0 475
ISWB200-250IA 250
358
465
69.4
99.4
129.2
18
16
11.2
73
78
70
1450 22 4.0 405
ISWB200-250IB 226
322
419
62.8
89.4
116.4
14.4
13
7.3
70
75
67
1450 18.5 4.0 387
ISWB200-315I 280
440
520
77.8
111.4
144
36
32
26
73
80
75
1450 55 4.0 675
ISWB200-315IA 262
374
482
72.8
103.9
135
31.5
28
23
72
79
74
1450 45 4.0 560
ISWB200-315IB 242
346
450
67.2
96.1
125
27
24
19.5
78
78
78
1450 37 4.0 535
ISWB200-400I 280
400
520
77.8
111.4
144
54.5
50
39
75
81
77
1450 75 4.0 830
ISWB200-400IA 262
374
486
72.8
103.9
135
48
44
34
80
80
80
1450 75 4.0 830
ISWB200-400IB 242
346
450
67.2
96.1
125
41.4
38
29.6
78
78
78
1450 55 5.0 685
ISWB200-400IC 224
320
416
62.2
88.9
115.6
34.9
32
25
76
76
76
1450 45 5.0 580
ISWB250-250 350
550
650
97.2
152.8
180.5
22
20
16
78
82
81
1450 45 5.0 620
ISWB250-250A 300
500
600
83.3
139
166.7
18.3
17
14
76
80
80
1450 37 5.0 550
ISWB250-235 300
500
600
83.3
139
166.7
14
12.5
11
73
78
70
1450 22 4.5 410
ISWB250-300 300
500
600
83.3
139
166.7
22
20
16
78
78
78
1450 37 4.5 550
ISWB250-315 350
550
650
97.2
152.8
180.5
34
32
28
76
80
79
1450 75 5.5 890
ISWB250-315A 300
500
600
83.3
139
166.7
29.5
28
24
74
78
77
1450 55 5.5 690
 ISWB250-315B 260
450
520
72.2
125
144.4
25
24
20
70
74
72
1450 45 5.5 620
ISWB250-400 300
500
600
83.3
139
166.7
54.5
50
39
72
72
72
1480 90 4.5 1530
ISWB300-235 480
720
900
133.3
200
250
20
18
15.5
77
81
74
970 55 5.0 1120
ISWB300-235A 438
607
821
121.7
182.5
228.1
16.5
15
13
75
79
72
970 45 5.0 1030
ISWB300-235B 400
600
750
111.1
167.0
208.3
14
12.5
11
73
77
70
970 37 5.0 890
ISWB300-300 480
720
900
133.3
200
250
31
28
25
77
81
77
970 75 5.0 1350
ISWB300-300A 444
666
833
123.3
185
231.4
26.5
24
21.5
76
80
76
970 75 5.0 1350
ISWB300-300B 415
623
779
115.3
173.1
261.4
23
21
18.5
79
79
79
970 55 5.0 1170
ISWB300-380 480
720
900
133.3
200
250
48
44
34
84
84
84
970 132 5.0 1900
ISWB300-380A 444
666
833
123.3
185
231.4
41.4
38
30
80
80
80
970 110 5.0 1700
ISWB300-380B 409
614
767
113.6
170.6
213.1
35
32
25
78
78
78
970 90 5.0 1530
ISWB300-235I 718
1080
1345
199.4
300
373.6
44.6
40
34.6
82
82
82
1450 160 5.5 1680
ISWB300-235IA 642
965
1203
178.3
268.1
334.2
35.7
32
27.7
80
80
80
1450 132 5.5 1440
ISWB200-315I 280
440
520
77.8
111.4
144
36
32
26
73
80
75
1450 55 4.0 675
ISWB200-315IA 262
374
482
72.8
103.9
135
31.5
28
23
72
79
74
1450 45 4.0 560
ISWB200-315IB 242
346
450
67.2
96.1
125
27
24
19.5
78
78
78
1450 37 4.0 535
ISWB200-400I 280
400
520
77.8
111.4
144 , ,
54.5
50
39
75
81
77
1450 75 4.0 830
ISWB200-400IA 262
374
486
72.8
103.9
135
48
44
34
80
80
80
1450 75 4.0 830
ISWB200-400IB 242
346
450
67.2
96.1
125
41.4
38
29.6
78
78
78
1450 55 5.0 685
ISWB200-400IC 224
320
416
62.2
88.9
115.6
34.9
32
25
76
76
76
1450 45 5.0 580
ISWB250-250 350
550
650
97.2
152.8
180.5
22
20
16
78
82
81
1450 45 5.0 620
ISWB250-250A 300
500
600
83.3
139
166.7
18.3
17
14
76
80
80
1450 37 5.0 550
ISWB250-235 300
500
600
83.3
139
166.7
14
12.5
11
73
78
70
1480 22 4.5 410
ISWB250-300 300
500
600
83.3
139
166.7
22
20
16
7878
78
1480 37 4.5 550
ISWB250-315 350
550
650
97.2
152.8
180.5
34
32
28
76
80
79
1450 75 5.5 890
ISWB250-315A 300
500
600
83.3
139
166.7
29.5
28
24
74
78
77
1450 55 5.5 690
ISWB250-315B 260
450
520
72.2
125
144.4
25
24
20
70
74
72
1450 45 5.5 620
ISWB250-400 300
500
600
83.3
139
166.7
54.5
50
39
72
72
72
1480 90 4.5 1530
ISWB250-235 480
720
900
133.3
200
250
20
18
15.5
77
81
74
970 55 5.0 1120
ISWB250-235A 438
607
821
121.7
182.5
228.1
16.5
15
13
75
79
72
970 45 5.0 1030
ISWB250-235B 400
600
750
111.1
167.0
208.3
14
12.5
11
73
77
70
970 37 5.0 890
ISWB300-300 480
720
900
133.3
200
250
31
28
25
77
81
77
970 75 5.0 1350
ISWB300-300A 444
666
833
123.3
185
231.4
26.5
24
21.5
76
80
76
970 75 5.0 1350
ISWB300-300B 415
623
779
115.3
173.1
261.4
23
21
18.5
79
79
79
970 55 5.0 1170
ISWB300-380 480
720
900
133.3
200
250
48
44
34
84
84
84
970 132 5.0 1900
ISWB300-380A 444
666
833
123.3
185
231.4
41.4
38
30
80
80
80
970 110 5.0 1700
ISWB300-380B 409
614
767
113.6
170.6
213.1
35
32
25
78
78
78
970 90 5.0 1530
ISWB300-235I 718
1080
1345
199.4
300
373.6
44.6
40
34.6
82
82
82
970 160 5.5 1680
ISWB300-235IA 642
965
1203
178.3
268.1
334.2
35.7
32
27.7
80
80
80
970 132 5.5 1440



溫州弘凌泵閥有限公司版權所有 浙ICP備09016411號-10
公司地址:浙江省永嘉縣甌北鎮浦西工業區
聯系電話:0577-67987292 67987270 67987290 傳真:0577-67987252
